Model No.: TST20
Brand: 3Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Rated Current: 20A
Rated Voltage: 125V
Color: White
Material: PC + Copper
Standard: USA Standard
Certificate: UL
Feature: Tamper Resistant
Accepted Terminal Wire Size: 12 gauge to 14 gauge
Operating Temperature: -35℃ to 66℃
Flammability: Rated V-2 per UL 943
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |

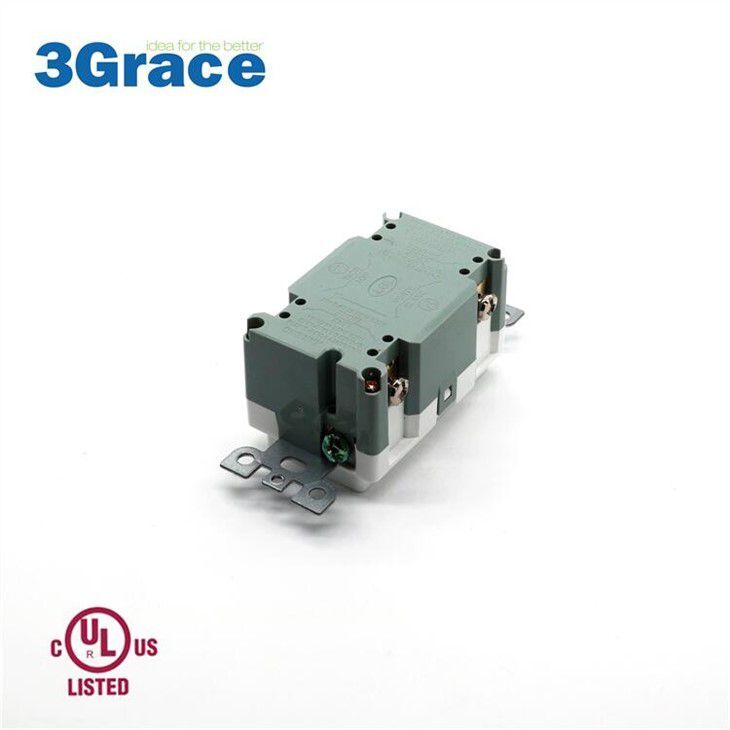

| Picture Example: |
|
To ensure continued protection against ground faults, GFCI receptacles perform automatic self-tests every 1-10 minutes. In the event of a ground fault, this GFCI will cut power within 1/40 of a second.
Tamper-proof shutter safety mechanism blocks power access unless plugged in, providing additional security for families with children
The LED indicator will turn off if the outlet is not powered, damaged, or if the GFCI Outlet is defunct.
Meets or exceeds UL943 2015 standards. Meets National Electrical Code (NEC) requirements. Terminals allow for easy wiring options - back and side wiring is supported. Components Included: (1) 20amp TR GFCI Receptacle, Wall Plate, (2) Screws, Installation Manual, Sticker Support One Year Warranty.
Rated Products
| Parameter | TS15/20 | TST15/20 | WTST15/20 | TST15L/20L |
| Amperage | 15A/20A | 15A/20A | 15A/20A | 15A/20A |
| Voltage | 125V AC | 125V AC | 125V AC | 125V AC |
| UL/CUL Listed | ● | ● | ● | ● |
| NEMA | 5-15R/5-20R | 5-15R/5-20R | 5-15R/5-20R | 5-15R/5-20R |
| Tamper-Resistant | / | ● | ● | ● |
| Weather-Resistant | / | / | ● | / |
| Applicable Standards | UL943 Fifth Edition/UL498/UL1998 | |||
| Trip Level | 4~6mA ≤0.025s | |||
| Grounding | Self-Grounding Cooper Clip Opitional | |||
| Face Material | PC | PC | PC | PC |
| Body Material | PC+Copper | PC+Copper | PC+Copper | PC+Copper |
| Operating Temperature | -35℃ to +66℃ | |||
| Flammability | Rated V-2 per UL943 | |||
| Warranty | 2 Years | |||
| Color | White/Ivory/Almond/Black/Brown or Customized | |||
