Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |

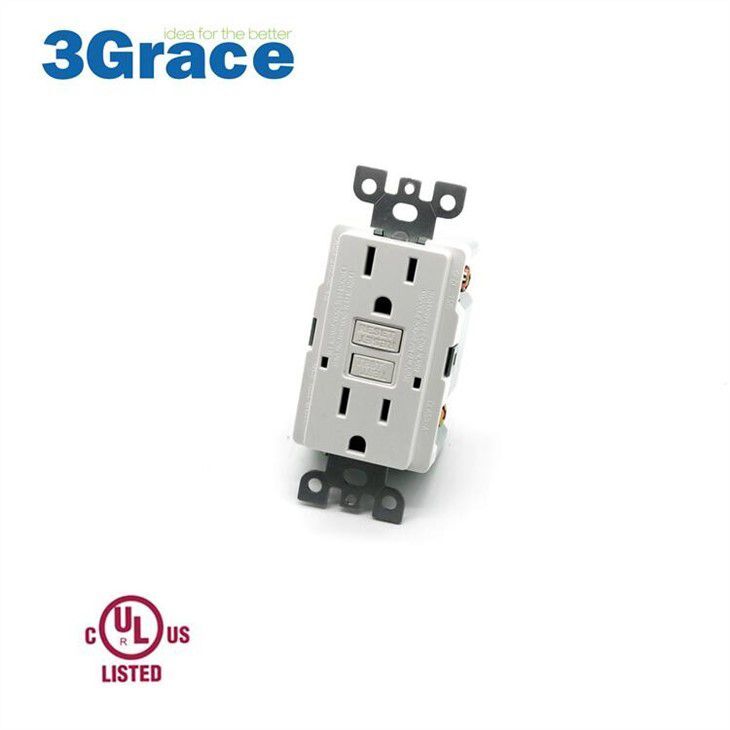

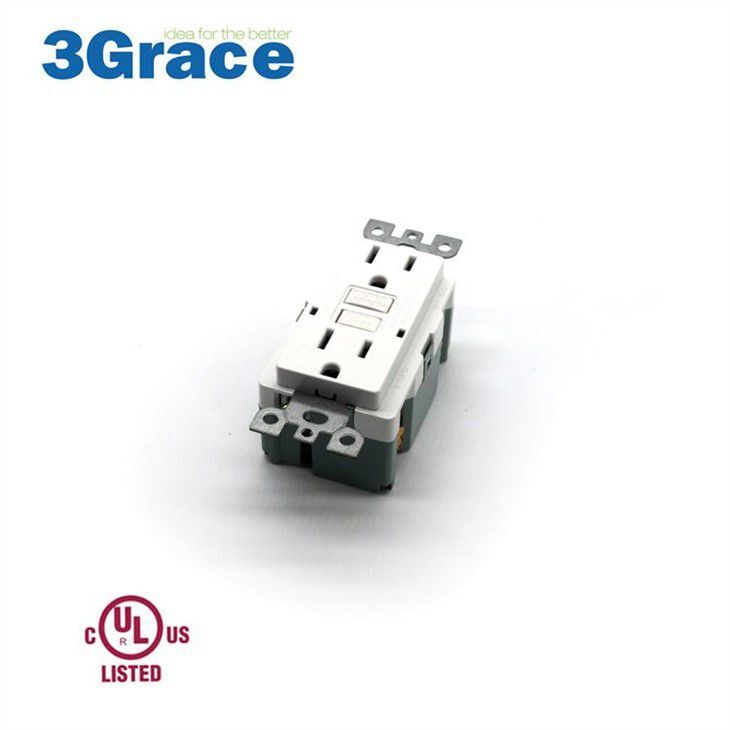

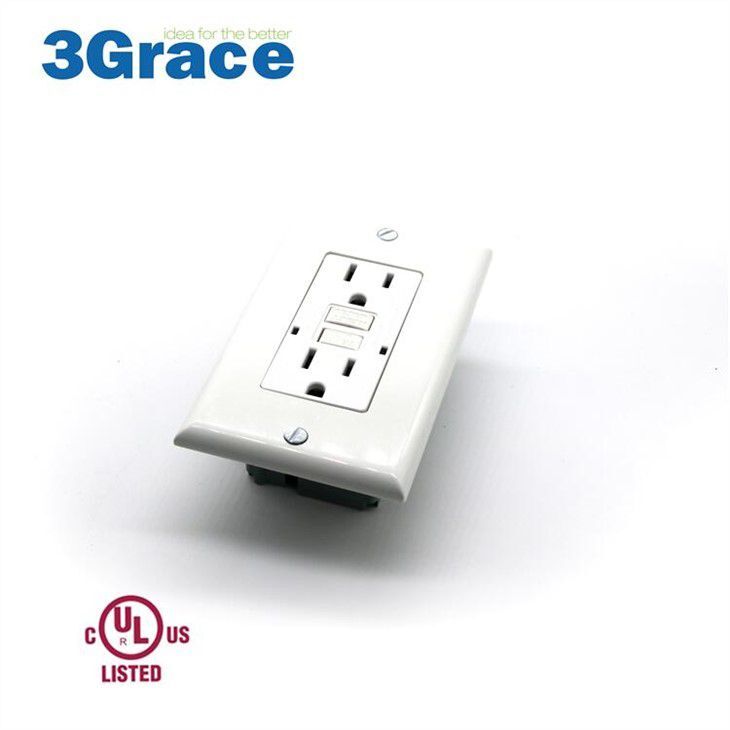

Model No.: TST15
Brand: 3 Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Residential / General-Purpose, Commercial, Industrial, Hospital
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|
Feature:
Self-Monitoring Function for each 10minutes to guarrante the safty of GFCI receptacle.
Unique structure design to guarrantee the trip function.
100% aging test with at least 24hours
100% PLC testing before shipment to guarantee the quality.
Long lifespan
Specification
| Input Voltage | 125 V |
| Amperage | 15 Amp |
| Frequency | 60Hz |
| Trip Fault Current | 4-6 mA |
| Trip Time | 25ms |
| Auto-Monitoring Function Test Power-up Test Interval | 1 Seconds |
| Auto-Monitoring Function Test Repeat Test Interval | 1-10 Minutes |
| Auto-Monitoring Function Test Detection and EOF LED Flash Rate | 0.1-3 Hz |
| Accepted Terminal Wire Size | 12 gauge to 14 gauge |

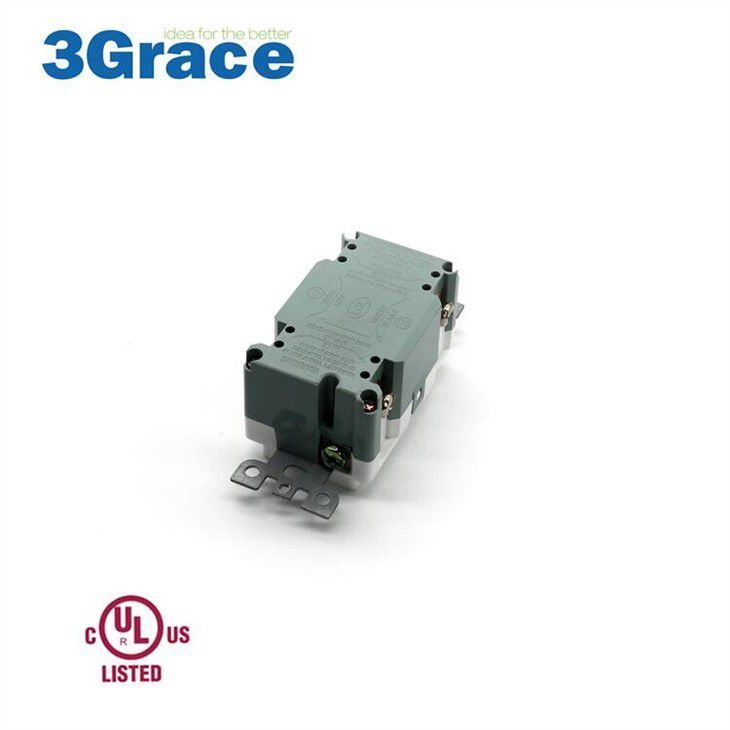

| Wiring Type | Rear pressure plate and side wiring |
| Flammability | Rated V-2 per UL 943 |
| Operating Temperature | -35℃ to 66℃ |
| Operating Humidity | 30-93% |
Contact Now
