15A 125V Ivory Decorative Duplex Receptacle
Get Latest Price| Min. Order: | 1 Piece/Pieces |
Zhejiang Trimone Technology Co., Ltd
Zhejiang Trimone Technology Co., Ltd
warranty period: 3months-1year
place of origin: China
Scope of application: Residential / General-Purpose
| Selling Units: | Piece/Pieces |
Receptacle
– 15A 125V AC Duplex Receptacle with Tamper Resistant
– Made of polycarbonate
– Push in #14 AWG Cu solid wire for 15A branch circuit only
– Side wire terminals accept #12 or #14 AWG solid copper or stranded wire
– Shallow design for maximum wiring room
– All devices fit standard wall boxes and are suitable for ganging
– Easy-access green hex head ground screw
– Captive mounting screws
– Washer-type break-off plaster ear for best flush alignment
– Large head combination screws for fast wiring
– Terminal screws backed out ready for wiring
– Combination Slot/Phillips head mounting and terminal screws ease installation
– Colors- White, Ivory, Almond, Deep Almond, Gray, Black or customized color
Description:
| Ground | U-Grounding Screws |
| Amperage | 15Amp |
| Voltage | 125V AC |
| HP Rating | 5-15R |
| Pole | 2 |
| Wire | 3 |
| Termination | quick wire Push-in and side wired |
| Face & Body Material | PC |
| Strip Material | Steel |
| Standard Color | White / Ivory / Almond /Black/Gray |
| Certification | UL/CUL |

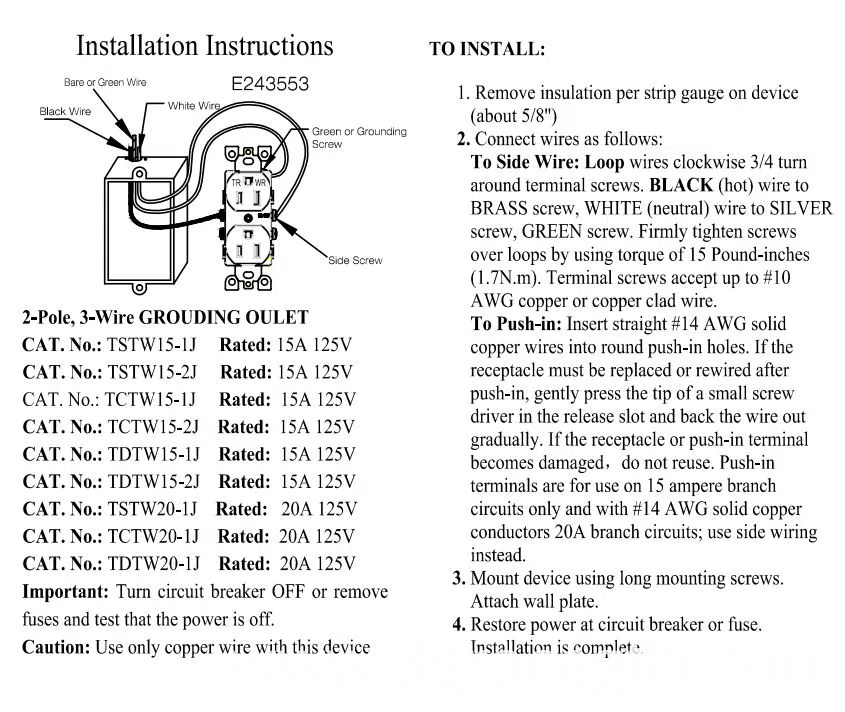

Installation:
Our equipment:
Who we are:
3Grace, Lishui Trimone Electrical Technology Co.,Ltd., is a manufacturer of US Standard Receptacle, till now have been in this line for over 20 years, has our own complete product line.
