Zhejiang Trimone Technology Co., Ltd
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | Ocean,Land,Air,Express |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air,Express |
Model No.: WTST20
Brand: 3Grace
warranty period: 3months-1year
Custom processing: Yes
place of origin: China
Chassis style: Wall Socket
Grounded: Gfci
Scope of application: Commercial, Industrial, Hospital, Residential / General-Purpose
Input Voltage: 125V
Frequency: 60Hz
Receptacle Current: 20A
GFCI size: 105*44.5*42.6mm
Weight: 123.5g
Color: White
Accepted Terminal Wire Size: 12 gauge to 14 gauge
Flammability: Rated V-2 per UL 943
Operating Temperature: -35℃ to 66℃
Operating Humidity: 30-93%
| Selling Units: | Piece/Pieces |
| Package Type: | 1pc with color box, 10pcs with white box, 50pcs/carton or 100pcs/carton or Customized |
| Picture Example: |
|

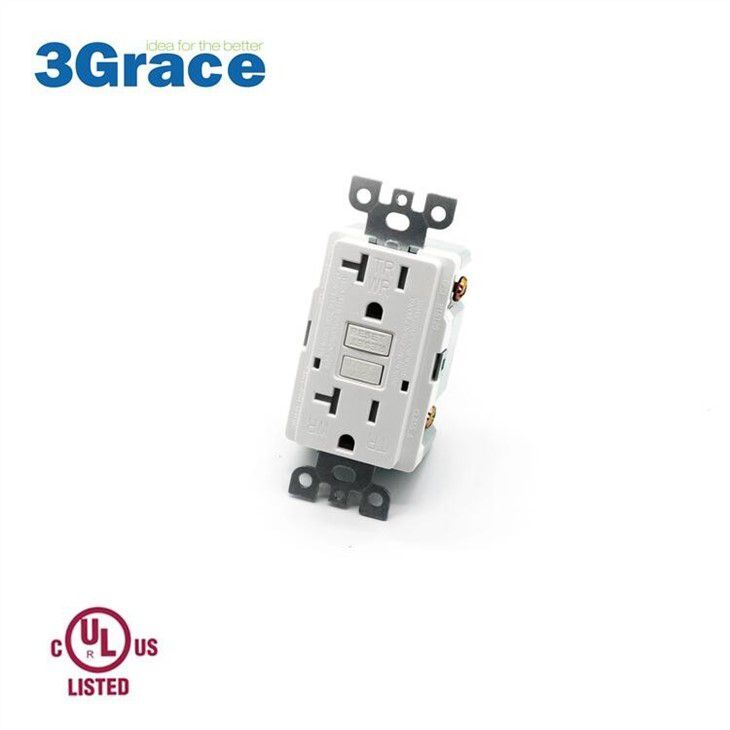

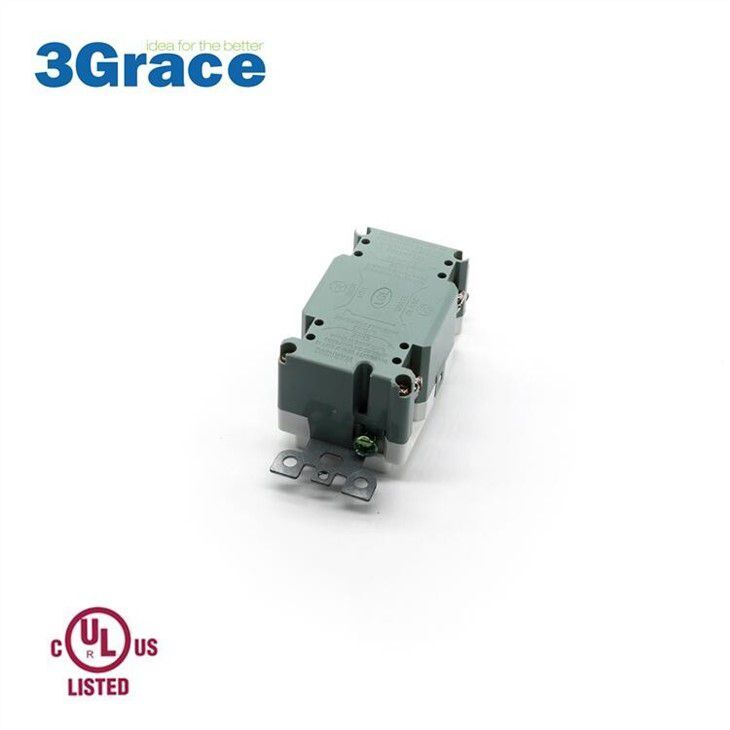

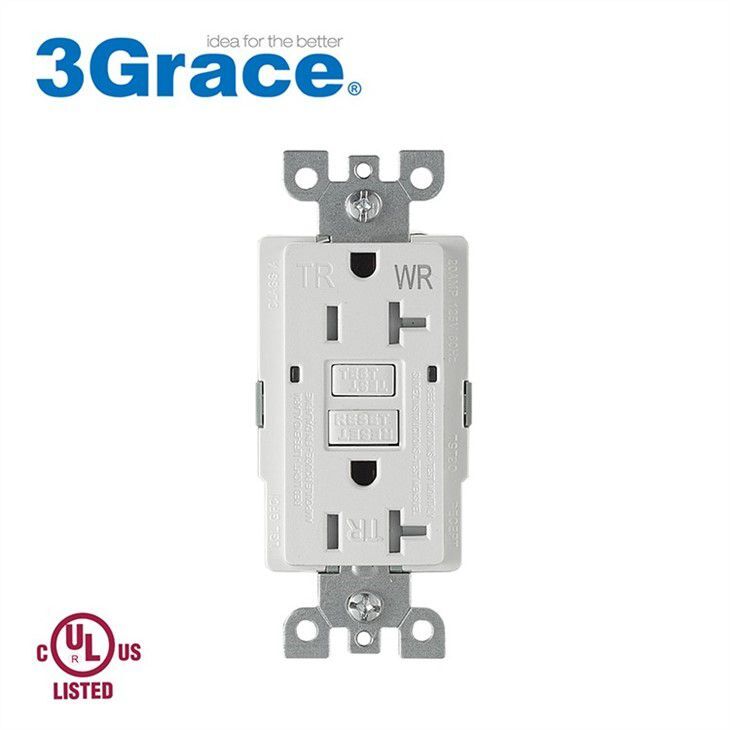

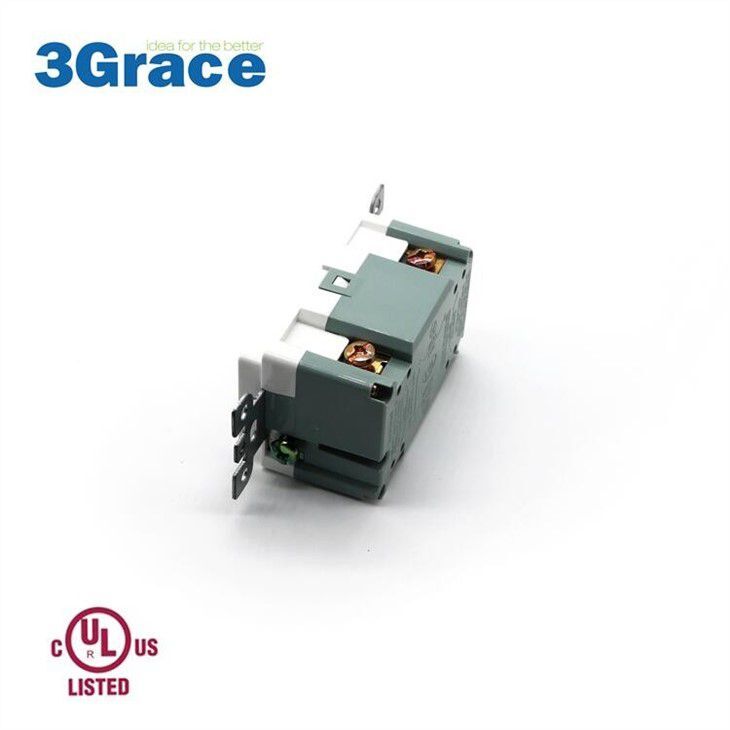

GFCI Outlet Product Application:
Gfci Outlet used for commercial, household, lighting, etc
GFCI Outlet Product Features:
1. Good heat dissipation--Blade design of copper alloy contacts, good conductivity
2. Super high impact resistance and thermal stability--Cover pans are made of high quality polycarbonate
3. Chemical corrosion resistance--Fingerprint-resistant zinc plated mounting brackets
4. Grounding--one-piece grounding design
5. Security mechanism--Shutter mechanism designed to prevent people accidental exposure
GFCI outlet specifications
| RODUCT NAME | 20A TR 125V GFCI |
| RATED CURRENT | 20A |
| RATED VOLTAGE | 125V |
| FRENQUENCY | 60Hz |
| MECHANICAL LIFE | 6000 Times |
| WITHSTAND VOLTAGE | 1500V |
| MAIN MATERIAL | Copper Pc |
| COLOR | White / Customized(MOQ 2000 pcs) |
| Mounting bracket | Anti-fingerprint zinc plated Iron |
